JH-W03 Fluid Pipeline Magnetic Separator
Main Features
1. Wide Application
The JH-W03 Fluid Pipeline Magnetic Separator, also known as a Magnetic Fluid Separator, Wet Magnetic Separator, or Magnetic Fluid Filter, is designed for use with fluids and semi-fluids of varying viscosities.
It effectively removes ferrous impurities and fine magnetic particles, ensuring material purity and protecting downstream processing equipment.
2. High-Quality Construction
The housing and panel are made from premium stainless steel, ensuring reliable sealing between the body and the drawer panel.
Equipped with silicone sealing gaskets, the unit effectively prevents material leakage and environmental contamination while blocking external pollutants to maintain product quality.
All welds are high-strength and highly sealed, having passed rigorous sealing and pressure tests.
The unit is easy to install and clean, operates without energy consumption, and offers low operating costs.
3. Multiple Magnetic Bar Options
Depending on the material characteristics, the separator can be equipped with:
-
JH-B Standard Cylindrical Magnetic Bars
-
JH-L Spiral Magnetic Field Cylindrical Magnetic Bars
-
JH-Z Linear Magnetic Field Cylindrical Magnetic Bars
Each type features an optimized magnetic circuit design to create a high-gradient magnetic field, ensuring excellent iron removal performance and cost-effectiveness.
4. High-Efficiency Iron Removal
-

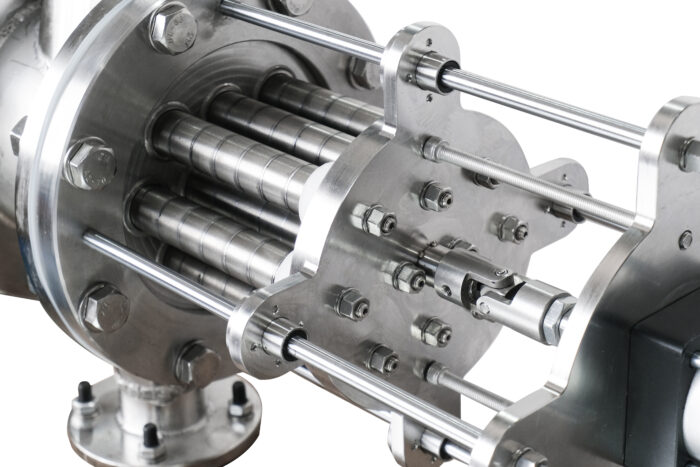

Equipped with 10 high-strength magnetic bars arranged at 12–15mm intervals, forming a dense and strong magnetic field for the efficient removal of fine magnetic impurities.
-
Bare magnetic field strength reaches up to 16,000 Gauss; magnetic field strength outside the protective tube reaches up to 13,500 Gauss.
-
Magnetic bars are designed for easy cleaning and minimal maintenance.
5. Convenient Observation and Maintenance

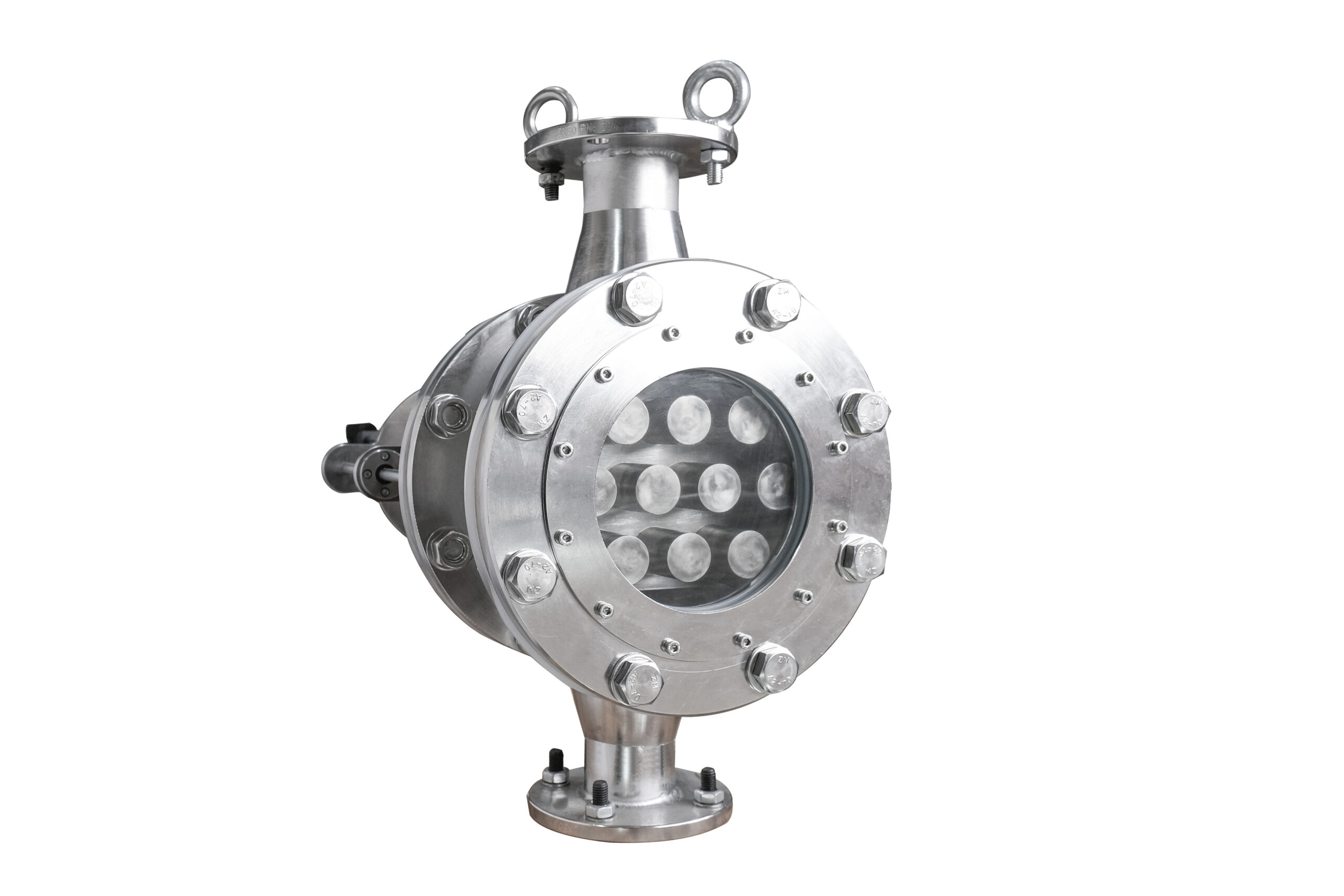

A tempered glass observation window allows operators to easily monitor impurity accumulation on the magnetic bars in real time.
6. Fully Automatic Cleaning System

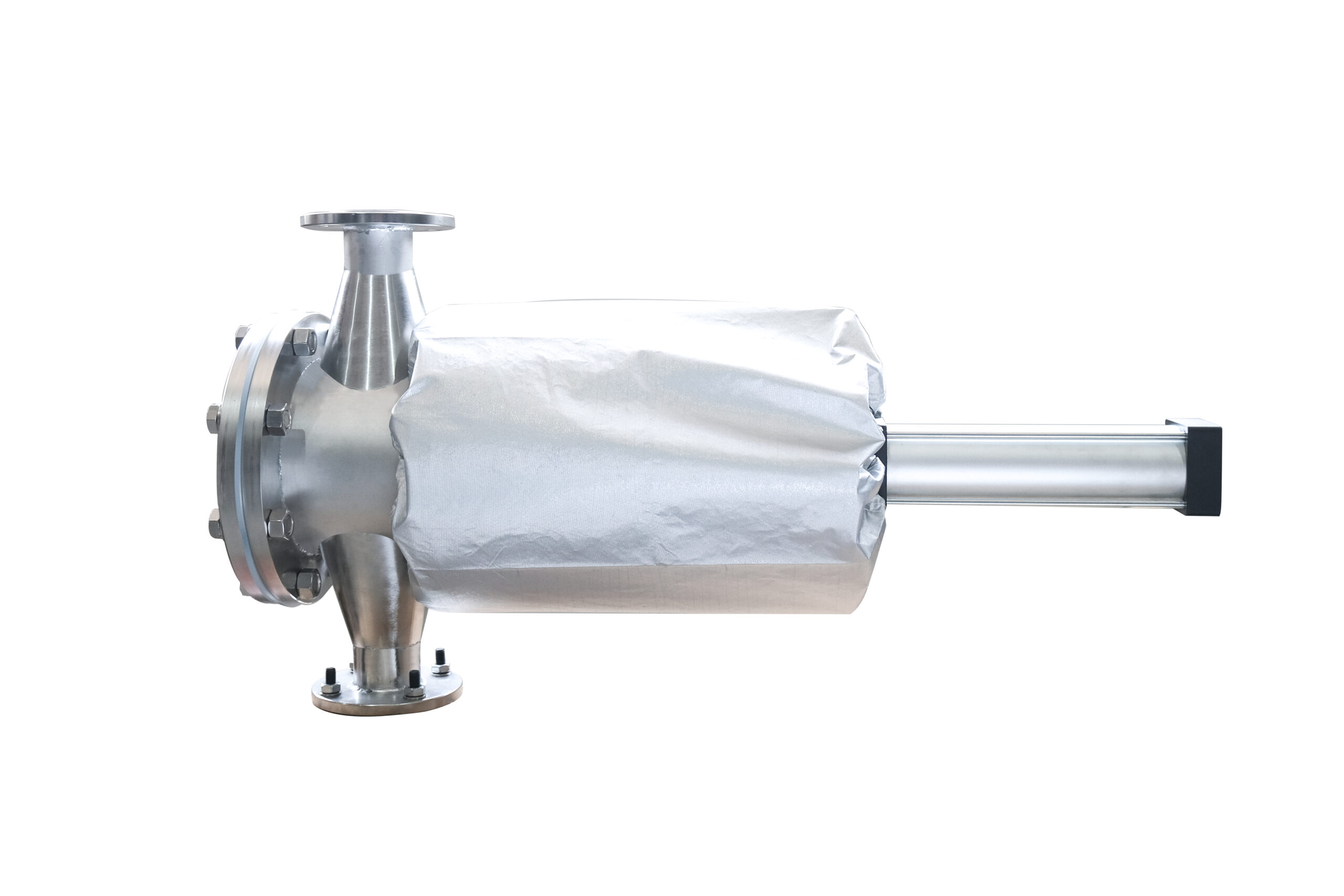

A push-pull cylinder mechanism enables fully automated cleaning, significantly reducing labor intensity and improving operational efficiency.
7. Equipment Specifications
-
Each unit features one drawer containing 10 magnetic bars.
-
Overall dimensions: 260mm × 428mm × 581–741mm
(Dimensions are for reference only; final specifications are subject to the factory inspection report or purchase contract.)
8. Multiple Diameter Options and Customization

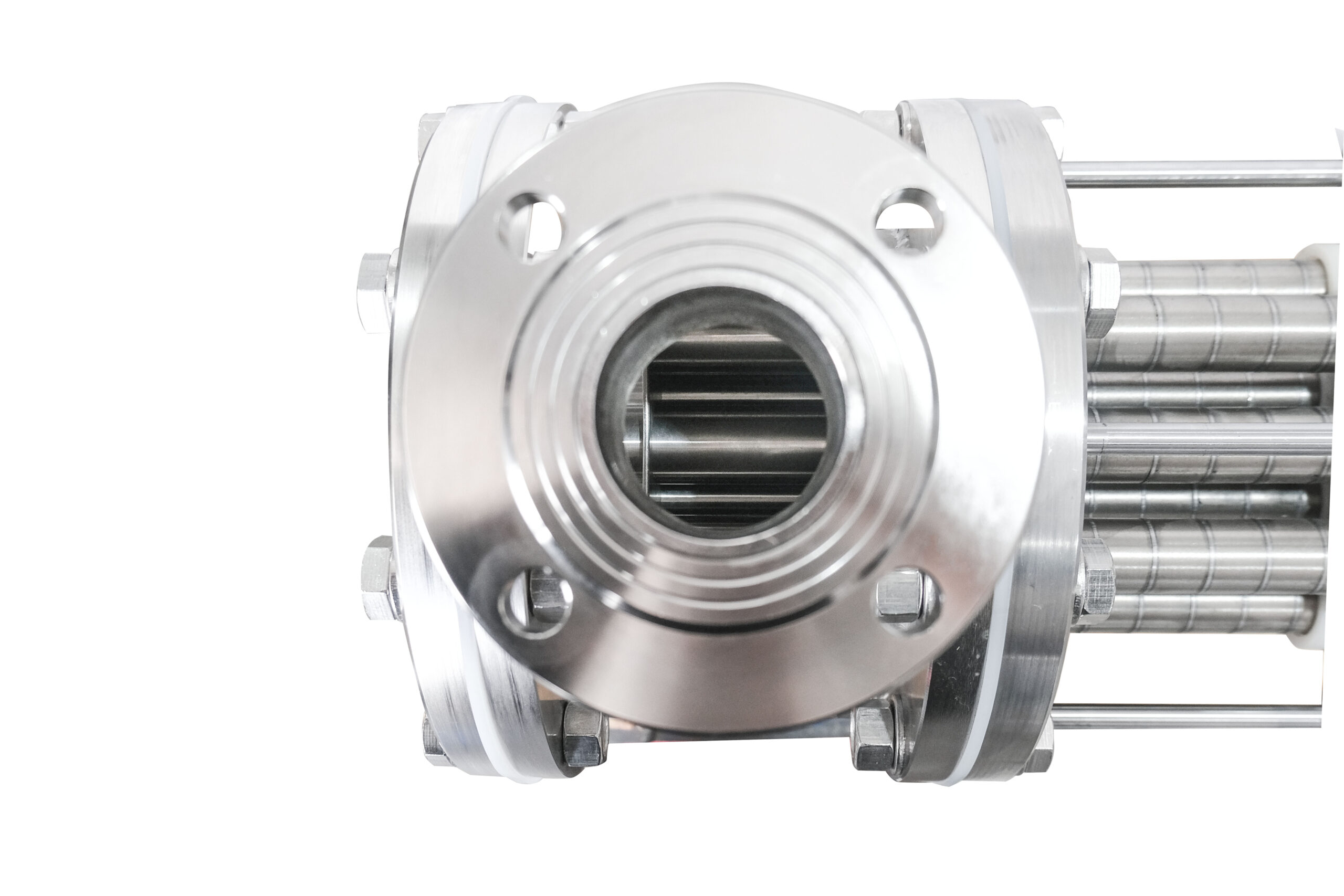

A variety of inlet and outlet diameters are available.
Non-standard designs can be customized to meet specific user requirements.
